Idea
To be able to efficiently send the image data over a wireless datalink, one option is to compress the video data using h264/h265 encoders. Those two are often implemented in a hardware-accelerated way on the onboard computers like RPI and Jetson Nano. We can use these encoders to compress the video data to about 1000kBit/s and keep some kind of acceptable quality in the images to be processed by the image analysis algorithms ( to be tested! ) on a basestation computer. These kind of compression is also used in existing solutions mentioned in https://www.hs-augsburg.de/homes/beckmanf/dokuwiki/doku.php?id=searchwing-wifibroadcast.
Tests
I conducted a first test using real images from a flight to check how well data could be compressed. I used gstreamer to compress a series of images to a videofile. Following settings choosen:
- Imagesize 8MP - 3280×2464
- Framerate 1Hz
- Interframerate 1Hz / Didnt work with H265 so i choose 0.5Hz
H264
gst-launch-1.0 -e multifilesrc location=“%04d.jpg” caps=“image/jpeg,framerate=1/1” ! jpegdec ! x264enc bitrate=1000 speed-preset=2 key-int-max=2 ! avimux ! filesink location=“out264.avi”
H265
gst-launch-1.0 -e multifilesrc location=“%04d.jpg” caps=“image/jpeg,framerate=1/1” ! jpegdec ! x265enc bitrate=1000 speed-preset=2 key-int-max=2 ! h265parse ! filesink location=out265.h265
Results

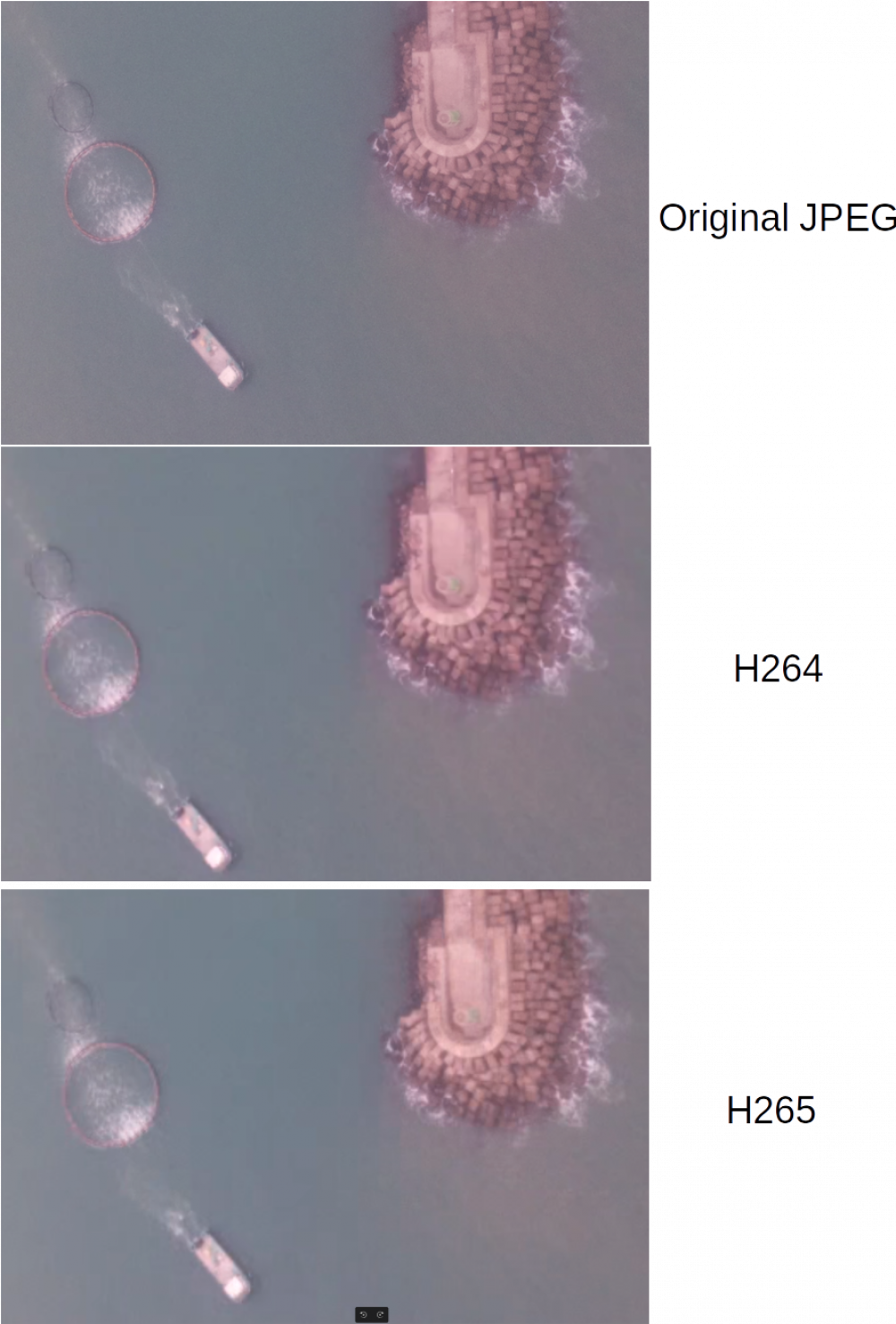

Images are still looking okay for a human beeing. If the algorithms are also okay with that reduced quality need to be tested.
H264s filesize is in line with to the specified bitrate. H265 somehow is ~4x bigger that the specified bitrate and also the quality is not really better than H264, so there are still some errors to find.
Testimages and results can be found here: https://cloud.hs-augsburg.de/s/sm6taLQCAyWMY6F
